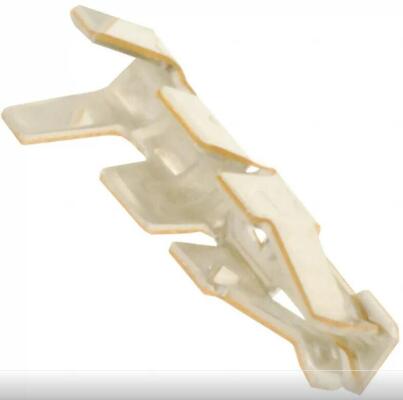

SPHD-001T-P0.5 Compact high-retention low-insertion vibration-resistant easy crimp 26-28 AWG ideal for tight electronics
Features
Current rating: up to 2 A
Voltage rating: 100 V AC/DC
Wire range: 28–26 AWG (0.08–0.13 mm²)
Material: phosphor bronze with tin plating
Contact design: box type with inner lance – provides high retention force with low insertion force
Crimp type: open-barrel – compatible with automatic crimping machines or hand tools
Temperature range: -25°C to +85°C
Compatible housings: PH series (e.g., PHR-2 to PHR-12, or SMT versions like B2B-PH-SM4-TBT)
Applications
Compact consumer electronics – wearable devices, portable audio, smart sensors
Small battery packs – lithium battery protection circuits (e.g., for Bluetooth devices, e-cigarettes)
Medical devices – portable monitors, diagnostic equipment
Home appliances – control panels, display boards, small motors
Prototyping and repairs – easy wire termination without soldering
Description
The SPHD-001T-P0.5 is a crimp-style socket contact designed for use with 2.0 mm pitch wire-to-board connector housings (compatible with JST PH series). It features a phosphor bronze base material with tin plating, providing reliable conductivity and corrosion resistance. This terminal accepts 28 to 26 AWG wires and utilizes a box-shaped contact area with an inner lance, ensuring secure mating retention and stable electrical performance. Its open-barrel design supports both automatic and manual crimping processes.
INFORMATION
|
category
|
Connectors, interconnects
Rectangular connectors
Rectangular connector contacts
|
|
|
manufacturer
|
JST Sales America Inc.
|
|
|
series
|
PHD
|
|
|
Packaging
|

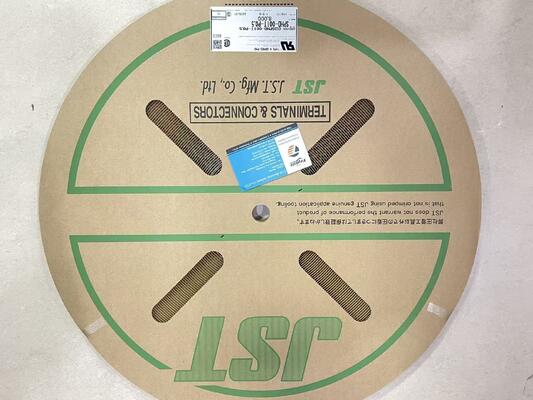

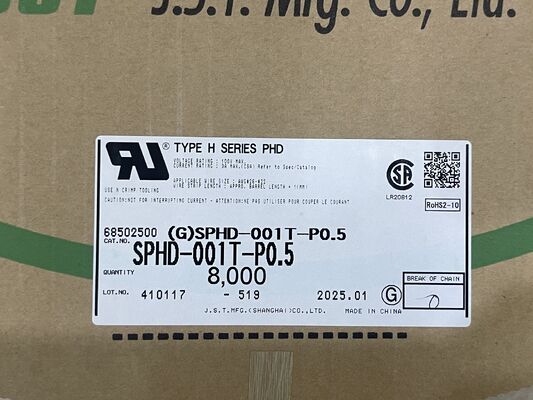

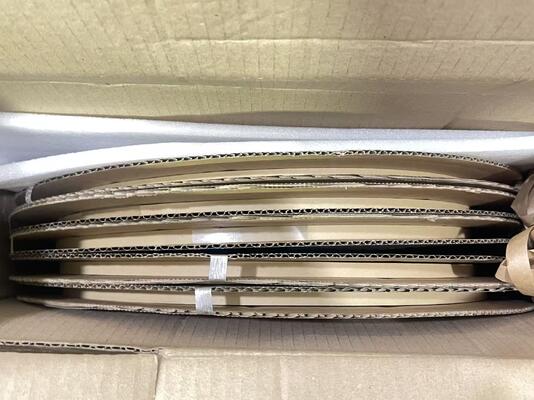

Tape and Reel (TR)
|
|
|
Part status
|
On sale
|
|
|
Type
|
With imprint
|
|
|
Pin or socket
|
Socket
|
|
|
The contact is end-to-end
|
Crimping
|
|
|
Wire gauge
|
22-26 AWG
|
|
|
Contact surface treatment
|
tin
|
Drawing
