商品の詳細:
お支払配送条件:
|
| 関数: | ステップアップ、ステップダウン | 出力構成: | 正または否定 |
|---|---|---|---|
| トポロジー: | バック、ブースト | 出力タイプ: | 調整可能 |
| 出力数: | 1 | ||
| ハイライト: | precision micro-power op-amp with low offset,rail-to-rail op-amp for battery-powered instruments,low noise op-amp with high CMRR |
||

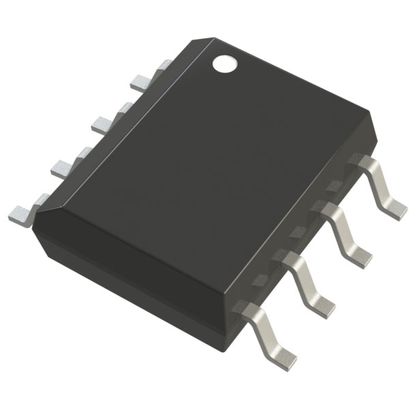

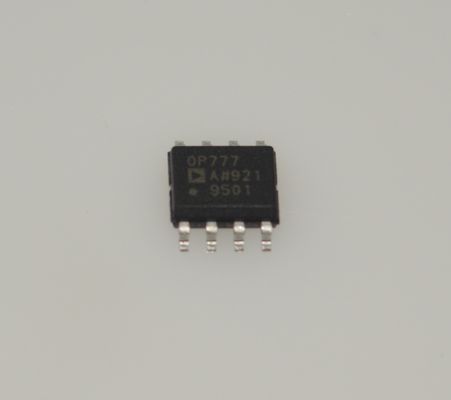

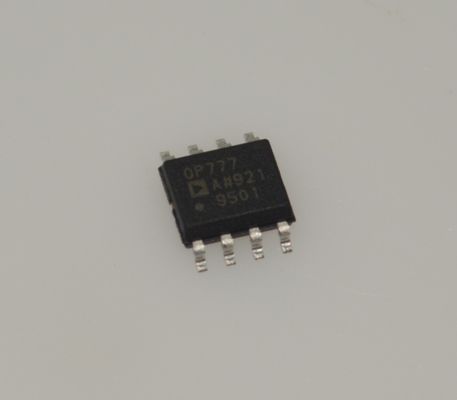

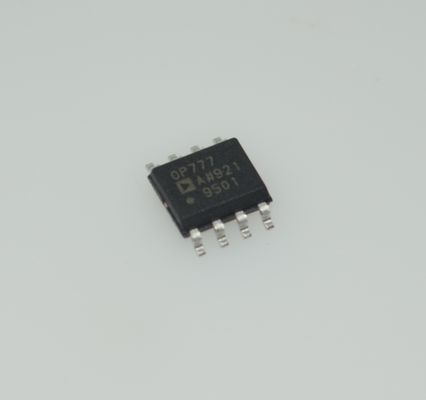

OP777ARZ Precision Micro-Power Op-Amp with Low Offset Low Noise Rail-to-Rail I/O Wide Supply Range and High CMRR for Battery-Powered Instruments & Sensor Interfaces
FEATURES
Low Offset Voltage: 100 V Max
Low Input Bias Current: 10nA Max
Single-Supply Operation: V to 30 V
Dual-Supply Operation: V to 15 V
Low Supply Current: 300 A/Amp Max
Unity Gain Stable
No Phase Reversal
APPLICATIONS
Current Sensing (Shunt)
Line or Battery-Powered Instrumentation
Remote Sensors
Precision Filters
OP727 SOIC Pin-Compatible with LT1013
DESCRIPTION
The OP777, OP727, and OP747 are precision single , dual, and quad rail-to-rail output single- supply amplifiers featuring micropower operation and rail-to-rail output ranges. These amplifiers provide improved performance over the industry-standard OP07 with ±15 V supplies, and offer the further advantage of true single-supply operation down to V , and smaller package options than any other high-voltage precision bipolar amplifier. Outputs are stable with capacitive loads of over 500 pF. Supply current is less than 300 μA per amplifier at 5 V. 500 Ω series resis tors protect the inputs, allowing input signal levels several volts above the positive supply without phase reversal.
Applications for these amplifiers include both line-powered and portable instrumentation, remote sensor signal conditioning, and precision filters.
The OP777, OP727, and OP747 are specified over the extended industrial (–40°C to +85°C) temperature range. The OP777, single, is available in 8-lead MSOP and 8-lead SOIC packages.
The OP747, quad, is available in 14-lead TSSOP and narrow 14-lead SO packages. Surface-mount devices in TSSOP and MSOP packages are available in tape and reel only.
The OP727, dual, is available in 8-lead TSSOP and 8-lead SOIC packages. The OP727 8-lead SOIC pin configuration differs from the standard 8-lead operational amplifier pinout.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Amplifier Type
|
|
|
|
Number of Circuits
|
1
|
|
|
Output Type
|
Rail-to-Rail
|
|
|
Slew Rate
|
0.2V/µs
|
|
|
Gain Bandwidth Product
|
700 kHz
|
|
|
Current - Input Bias
|
5 nA
|
|
|
Voltage - Input Offset
|
30 µV
|
|
|
Current - Supply
|
300µA
|
|
|
Current - Output / Channel
|
30 mA
|
|
|
Voltage - Supply Span (Min)
|
2.7 V
|
|
|
Voltage - Supply Span (Max)
|
30 V
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SOIC
|
|
|
Base Product Number
|
Drawing
