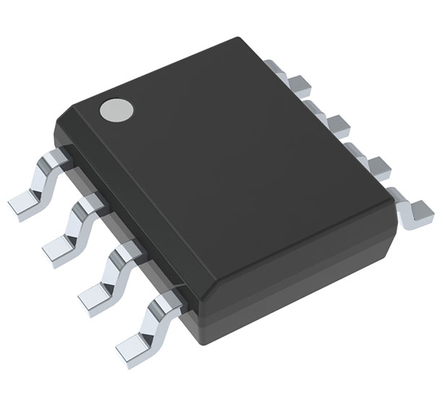

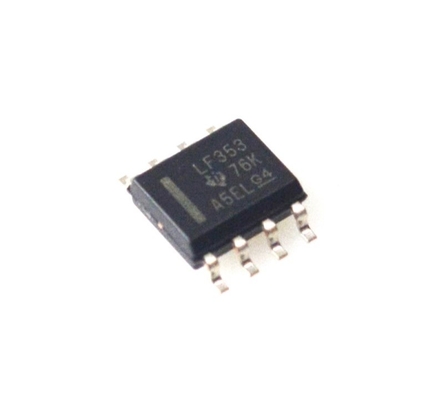

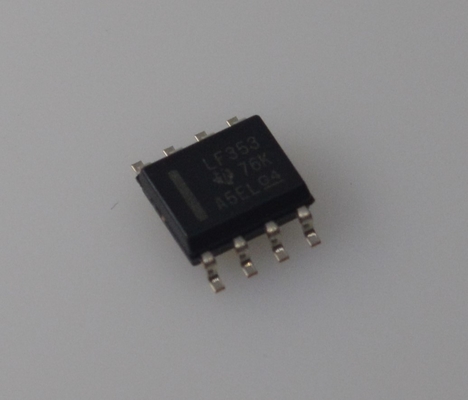

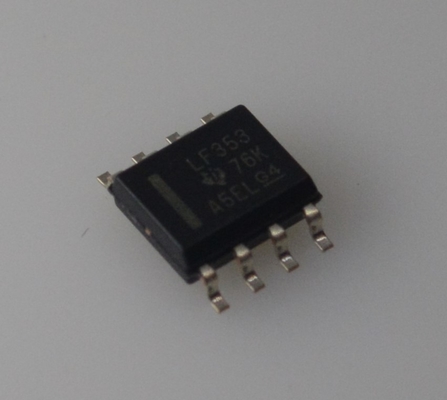

LF353DR Dual JFET Op-Amp 4MHz Bandwidth Low Noise High Input Impedance Wide Supply Range (±18V) Low Power Fast Slew Rate TO-99/DIP Package - Ideal for Audio & Precision Circuits
Features
• LowInput Bias Current 50 pA Typical
• LowInput Noise Current 0.01 pA/√Hz Typical
• LowSupply Current 3.6 mA Typical
• High Input Impedance 1012 Ω Typical
• Internally-Trimmed Offset Voltage
• Gain Bandwidth 3 MHz Typical
• High Slew Rate 13 V/µs Typical
Applications
• Motor Integrated Systems: UPS
• Drives and Control Solutions: AC Inverter and VF Drives
• Renewables: Solar Inverters
• ProAudio Mixers
• Oscilloscopes
Description
This LF353 device is a low-cost, high-speed, JFET input operational amplifier with very low input offset voltage. It requires low supply current yet maintains a large gain-bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET input provides very low input bias and offset currents.
The LF353 can be used in applications such as high speed integrators, digital-to-analog converters, sample-and-hold circuits, and many other circuits.
The LF353 is characterized for operation from 0°C to 70°C.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Amplifier Type
|
|
|
|
Number of Circuits
|
2
|
|
|
Output Type
|
-
|
|
|
Slew Rate
|
13V/µs
|
|
|
Gain Bandwidth Product
|
3 MHz
|
|
|
Current - Input Bias
|
50 pA
|
|
|
Voltage - Input Offset
|
5 mV
|
|
|
Current - Supply
|
3.6mA (x2 Channels)
|
|
|
Current - Output / Channel
|
40 mA
|
|
|
Voltage - Supply Span (Min)
|
7 V
|
|
|
Voltage - Supply Span (Max)
|
36 V
|
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SOIC
|
|
|
Base Product Number
|
Drawing
