商品の詳細:
お支払配送条件:
|
| Function: | Step-Up, Step-Down | Output Configuration: | Positive or Negative |
|---|---|---|---|
| Topology: | Buck, Boost | Output Type: | Adjustable |
| Number of Outputs: | 1 | ||
| ハイライト: | 128GB DG201BDY,DG201BDY Integrated Circuits,Fingerprint Unlock DG201BDY |
||

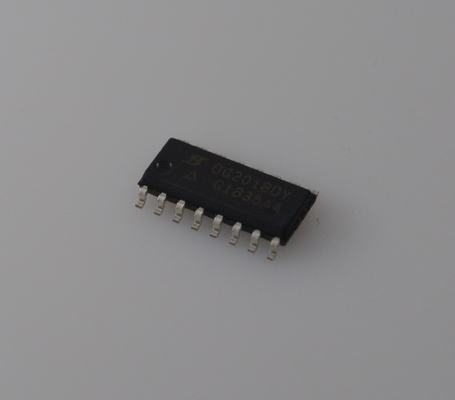

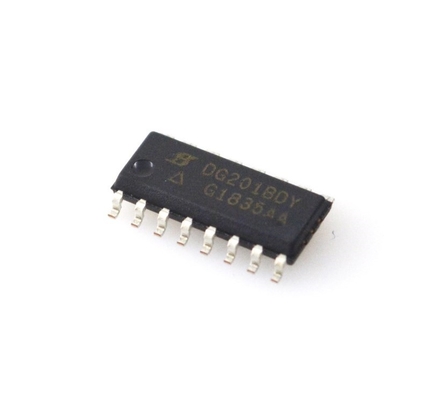

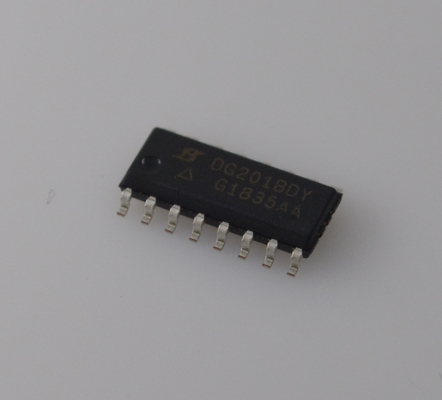

DG201BDY Ultra-Fast 5G 5000mAh Long Battery 6.5" HD+ Display 128GB Storage 48MP AI Camera Sleek Design Face/Fingerprint Unlock Dual SIM Affordable Price – Power & Performance Redefined
FEATURES
• ± 22 V supply voltage rating
• TTL and CMOS compatible logic
• Low on-resistance - RDS(on): 45
• Low leakage - ID(on): 20 pA
• Single supply operation possible
• Extended temperature range
• Fast switching - tON: 120 ns
• Low glitching - Q: 1 pC
APPLICATIONS
• Industrial instrumentation
• Test equipment
• Communications systems
• Disk drives
• Computer peripherals
• Portable instruments
• Sample-and-hold circuits
DESCRIPTION
The DG201B, DG202B analog switches are highly improved versions of the industry-standard DG201A, DG202. These devices are fabricated in Vishay Siliconix’ proprietary silicon gate CMOS process, resulting in lower on-resistance, lower leakage, higher speed, and lower power consumption.
These quad single-pole single-throw switches are designed for a wide variety of applications in telecommunications, instrumentation, process control, computer peripherals, etc. An improved charge injection compensation design minimizes switching transients. The DG201B and DG202B can handle up to ± 22 V input signals, and have an improved continuous current rating of 30 mA. An epitaxial layer prevents latchup.
All devices feature true bi-directional performance in the on condition, and will block signals to the supply voltages in the off condition.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Vishay Siliconix
|
|
|
Series
|
-
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Obsolete
|
|
|
Switch Circuit
|
SPST - NC
|
|
|
Multiplexer/Demultiplexer Circuit
|
1:1
|
|
|
Number of Circuits
|
4
|
|
|
On-State Resistance (Max)
|
85Ohm
|
|
|
Channel-to-Channel Matching (ΔRon)
|
2Ohm
|
|
|
Voltage - Supply, Single (V+)
|
4.5V ~ 25V
|
|
|
Voltage - Supply, Dual (V±)
|
±4.5V ~ 22V
|
|
|
Switch Time (Ton, Toff) (Max)
|
300ns, 200ns
|
|
|
-3db Bandwidth
|
-
|
|
|
Charge Injection
|
1pC
|
|
|
Channel Capacitance (CS(off), CD(off))
|
5pF, 5pF
|
|
|
Current - Leakage (IS(off)) (Max)
|
500pA
|
|
|
Crosstalk
|
-95dB @ 100kHz
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
16-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package
|
16-SOIC
|
|
|
Base Product Number
|
Drawing
