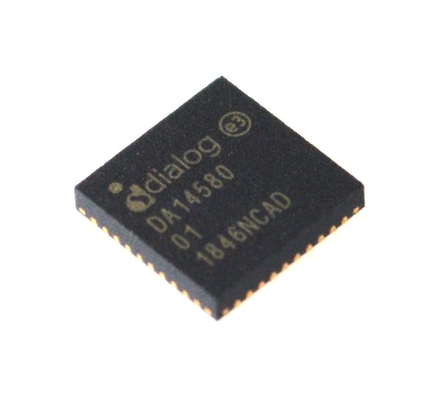

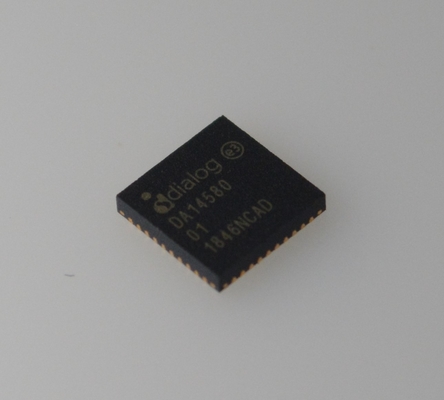

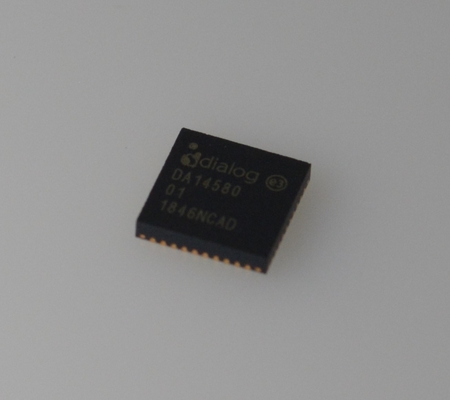

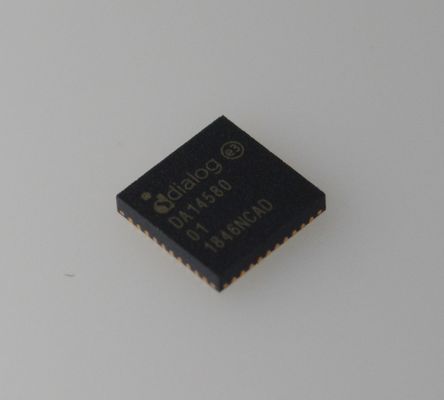

DA14580-01AT2 Bluetooth 5.0 SoC with Ultra-Low Power 2.5x2.5mm Size ARM Cortex-M0 Long Battery Life Security Multi-Protocol & Affordable IoT Design

DA14580-01AT2 Bluetooth 5.0 SoC with Ultra-Low Power 2.5x2.5mm Size ARM Cortex-M0 Long Battery Life Security Multi-Protocol & Affordable IoT Design

Features

 Complies with Bluetooth V4.2, ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)

 Processing power

   16MHz 32 bit ARM Cortex-M0 with SWD inter face

   Dedicated Link Layer Processor

   AES-128 bit encryption Processor

 Memories

   32kB One-Time-Programmable (OTP) memory

   42kB System SRAM

   84 kB ROM

   8 kB Retention SRAM

 Power management

   Integrated Buck/Boost DC-DC converter

   P0, P1, P2 and P3 ports with 3.3 V tolerance

   Easy decoupling of only 4 supply pins

   Supports coin (typ. 3.0 V) and alkaline (typ. 1.5 V) battery cells

   10-bit ADC for battery voltage measurement

 Digital controlled oscillators

   16MHz crystal (±20 ppm max) and RC oscillator

   32kHz crystal (±50 ppm, ±500 ppm max) and RCX oscillator

 General purpose, Capture and Sleep timers

 Digital interfaces

   General purpose I/Os: 14 (WLCSP34 package), 24 (QFN40 package), 32 (QFN48 package)

   2 UARTs with hardware flow control up to 1 MBd

   SPI+™ interface

   I2C bus at 100 kHz, 400 kHz

   3-axes capable Quadrature Decoder

 Analog interfaces

   4-channel 10-bit ADC

 Radio transceiver

   Fully integrated 2.4 GHz CMOS transceiver

   Single wire antenna: no RF matching or RX/TX switching required

   Supply current at VBAT3V: TX: 3.4 mA, RX: 3.7 mA (with ideal DC-DC)

   0dBm transmit output power

  -20 dBm output power in “Near Field Mode”

  -93 dBm receiver sensitivity

 Packages:

   WLCSP 34 pins, 2.436 mm x 2.436 mm

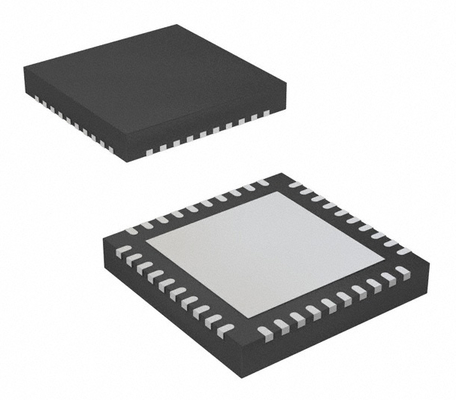

   QFN 40 pins, 5 mm x 5 mm

   QFN 48 pins, 6 mm x 6 mm

   KGD (wafer, dice)

General Description

The DA14580 integrated circuit has a fully integrated radio transceiver and baseband processor for Blue tooth® low energy. It can be used as a standalone application processor or as a data pump in hosted sys tems.

The DA14580 supports a flexible memory architecture for storing Bluetooth profiles and custom application code, which can be updated over the air (OTA). The qualified Bluetooth low energy protocol stack is stored in a dedicated ROM. All software runs on the ARM® Cortex®-M0 processor via a simple scheduler.

The Bluetooth low energy firmware includes the L2CAP service layer protocols, Security Manager (SM), Attribute Protocol (ATT), the Generic Attribute Profile (GATT) and the Generic Access Profile (GAP). All profiles published by the Bluetooth SIG as well as custom profiles are supported.

The transceiver interfaces directly to the antenna and is fully compliant with the Bluetooth 4.2 standard. The DA14580 has dedicated hardware for the Link Layer implementation of Bluetooth low energy and interface controllers for enhanced connectivity capabili ties.

System Diagram

INFORMATION

Drawing
