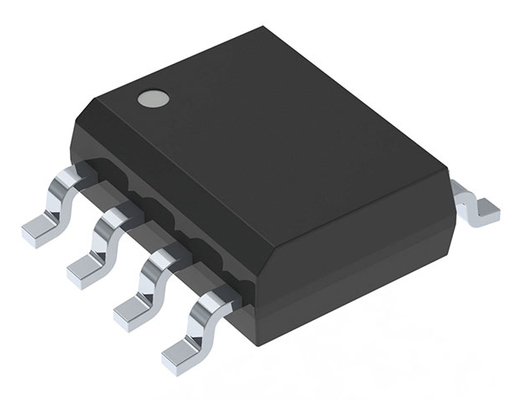

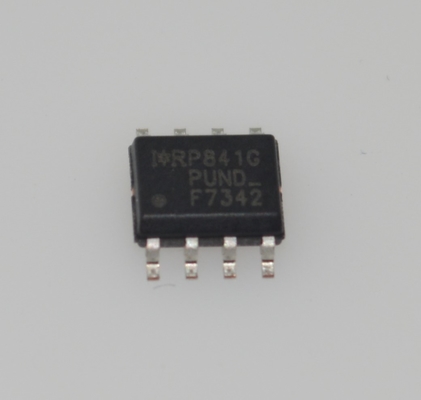

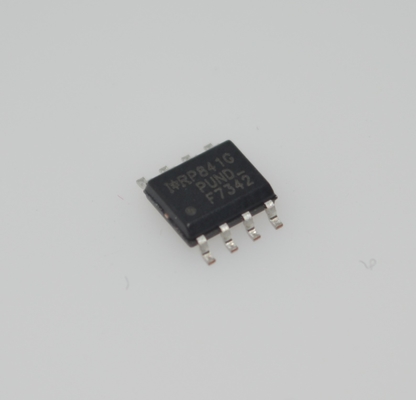

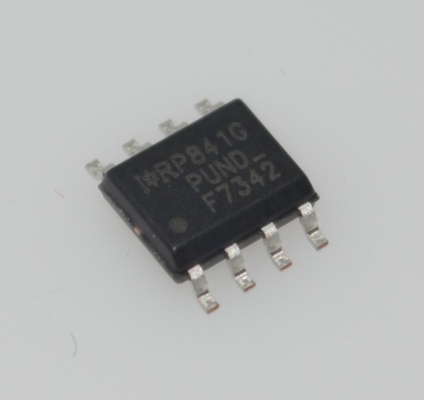

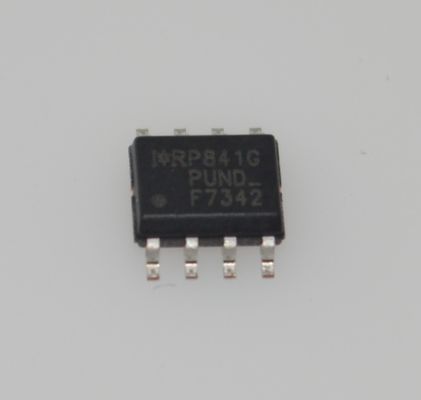

IRF7342TRPBF Dual 55V 6.5A MOSFET Pair with 50mΩ RDS(on) Fast Switching Low Gate Charge SOIC-8 Package ESD Protected & Ideal for DC-DC/Synchronous Rectification
Features
Generation V Technology
Ultra Low On-Resistance
Dual P Channel MOSFET
Surface Mount
Available in Tape & Reel
Dynamic dv/dt Rating
Fast Switching
Lead-Free
Description
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
The SO-8 has been modified through a customized lead frame for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of power applications. With these improvements, multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra red, or wave soldering techniques. Power dissipation of greater than 0.8W is possible in a typical PCB mount application.
Applications
Power Conversion Systems
Synchronous rectification DC-DC converters
Buck/boost voltage regulators
High-efficiency switch-mode power supplies (SMPs)
Motor Control Applications
Small BLDC motor drives
Precision stepper motor control
Low-voltage servo systems
Battery Management Systems
Lithium battery charge/discharge protection
Power path management (OR-ing)
Mobile device power switching
Automotive Electronic Systems
Vehicle DC-DC conversion modules
Auxiliary power management systems
Automotive lighting drivers
Industrial Automation Equipment
PLC output modules
Industrial control power supplies
Low-voltage motor drivers
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Infineon Technologies
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Configuration
|
2 P-Channel (Dual)
|
|
|
FET Feature
|
Logic Level Gate
|
|
|
Drain to Source Voltage (Vdss)
|
55V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
3.4A
|
|
|
Rds On (Max) @ Id, Vgs
|
105mOhm @ 3.4A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
1V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
38nC @ 10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
690pF @ 25V
|
|
|
Power - Max
|
2W
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SO
|
|
|
Base Product Number
|
Drawing
