| 定位電圧 AC IEC: | 690V | アンペア評価: | 125 A |
|---|---|---|---|
| ROHS準拠: | はい | 製品の幅: | 40 mm |
| 製品の長さ: | 135 mm | 製品の高さ: | 64のmm |
| ハイライト: | IGBT module 250A high current,1200V IGBT power module,IGBT module for industrial drives |
||
NH1GG69V250P IGBT Module 250A High Current 1200V Voltage Low Vce(sat) High Efficiency Robust Isolation 175anddeg;C Rating Compact Design for Industrial Drives andamp; UPS Systems
andnbsp;
Features
Dimensions according to DIN 43 620 parts 1 to 4
Non-isolated gripping lugs
Double indicator
0% cadmium
andnbsp;
Applications
general purpose cable and line protection
andnbsp;
Description
Type andquot;gGandquot; NH fuse-links are full range breaking capacity fuse-links and are used toandnbsp;protect cables and equipment. They can interrupt any current surge, from the lowestandnbsp;fusing current up to their breaking capacity, and so can be used alone as protection.They also protect electrical devices and industrial set-ups from the electrodynamicandnbsp;effects of very high short-circuit currents.
andnbsp;
INFORMATION
| Item number | W233262 |
| Catalogue No | NH1GG69V250 |

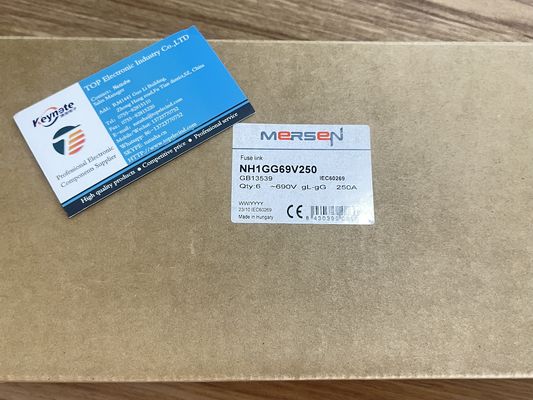

| Description | DIN NH Standard fuse-link gG Size NH1 690VAC 400VDC 250A live tags Double indicator Body width 40 mm |
| EAN/UPC Code | 8430399026114 |
| Rated voltage AC IEC | 690 V |
| Rated voltage DC IEC | 400 V |
| Ampere Rating | 250 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | gG |
| Fuse Size | NH1 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 80 kA |
| Design Details | live tags |
| Indication System | Yes |
| Indication System Type | Double indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Plain Blades |
| Product Width | 40 mm |
| Product Length | 135 mm |
| Product Height | 64 mm |

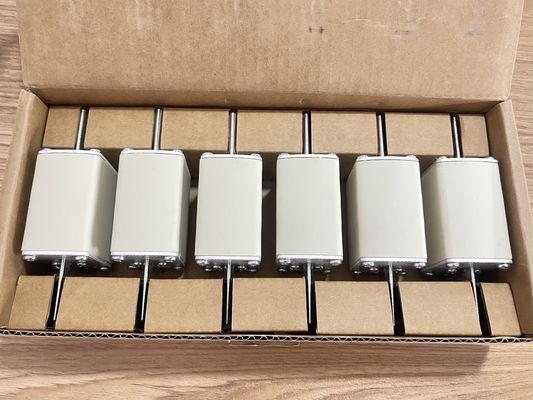

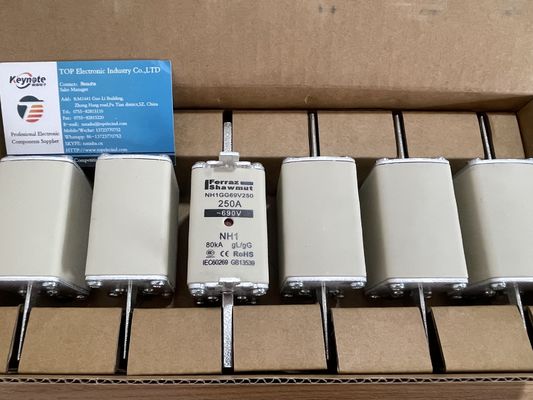

| Sell Pack Quantity | 3 EA |
| Sell Pack Weight | 1.26 kg |
| Sell Pack Width | 125 mm |
| Sell Pack Length | 139 mm |
| Sell Pack Height | 70 mm |
| Product group | Low Voltage IEC Fuses |
| Product Weight | 0.42 kg |
| Body/Insulating Material | Ceramic |
| Power Dissipation at Rated Current Value | 20 W |
