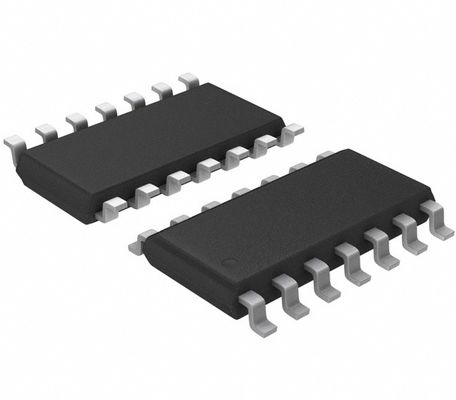

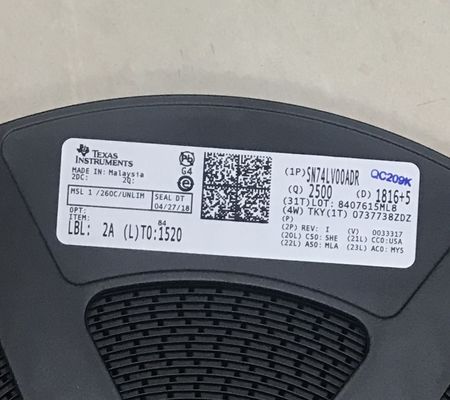

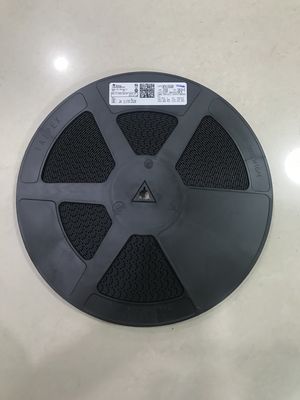

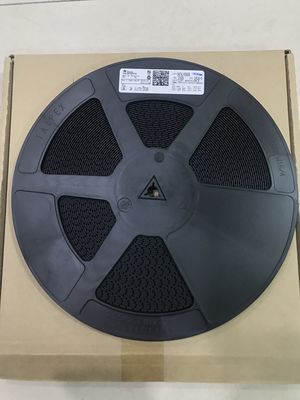

SN74LV00ADR 4-Channel 2-Input NAND Gate with Wide 2V to 5.5V Supply 8ns Speed Low Power CMOS Technology High Noise Immunity Industry-Standard SOIC-14 Package
Features
• 2-V to 5.5-V VCC Operation
• Maxtpd of 6.5 ns at 5 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESDProtection Exceeds JESD 22– 2000-V Human-Body Model– 200-V Machine Model– 1000-V Charged-Device Model
Applications
• Power Infrastructure
• Network Switch
• Automotive Infotainment
• Servers
Description
These quadruple 2-input positive-NAND gates are designed for 2-V to 5.5-V VCC operation. The SNx4LV00A devices perform the boolean function Y = A ● B or Y = A + B in positive logic.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Logic Type
|
|
|
|
Number of Circuits
|
4
|
|
|
Number of Inputs
|
2
|
|
|
Features
|
-
|
|
|
Voltage - Supply
|
2V ~ 5.5V
|
|
|
Current - Quiescent (Max)
|
20 µA
|
|
|
Current - Output High, Low
|
12mA, 12mA
|
|
|
Input Logic Level - Low
|
0.5V
|
|
|
Input Logic Level - High
|
1.5V
|
|
|
Max Propagation Delay @ V, Max CL
|
7.5ns @ 5V, 50pF
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
14-SOIC
|
|
|
Package / Case
|
14-SOIC (0.154", 3.90mm Width)
|
|
|
Base Product Number
|
Drawing
