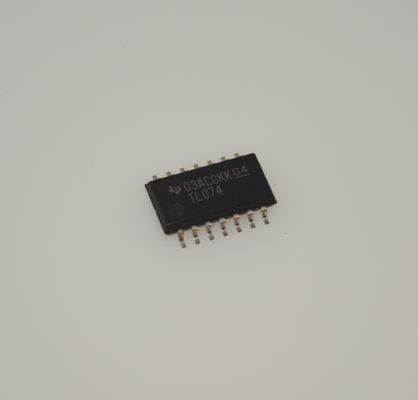

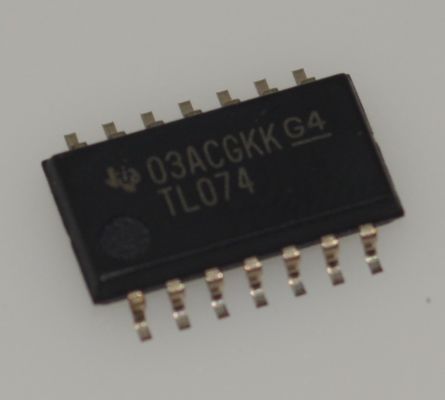

TL074CNS Quad Low-Noise JFET Op Amp with 3MHz Bandwidth 13V/µs Slew Rate ±18V Supply Low Input Bias High-Z Input PDIP-14 Package 0°C to 70°C Range for Analog Signal Processing

TL074CNS Quad Low-Noise JFET Op Amp with 3MHz Bandwidth 13V/µs Slew Rate ±18V Supply Low Input Bias High-Z Input PDIP-14 Package 0°C to 70°C Range for Analog Signal Processing

Features

• High slew rate: 20V/μs (TL07xH, typ)

• Low offset voltage: 1mV (TL07xH, typ)

• Low offset voltage drift: 2μV/°C

• Low power consumption: 940μA/ch (TL07xH, typ)

• Wide common-mode and differential voltage ranges

  – Common-mode input voltage range includes VCC+

• Low input bias and offset currents

• Low noise:

  – Vn = 37nV/√ Hz (typ) at f = 1kHz

• Output short-circuit protection

• Low total harmonic distortion: 0.003% (typ)

• Wide supply voltage:

  – ±2.25V to ±20V, 4.5V to 40V

Applications

• Solar energy: string and central inverter

• Motor drives: ac and servo drive control and power-stage modules

• Single-phase online UPS

• Three-phase UPS

• Pro audio mixers

• Battery test equipment

Description

The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/μs), and common-mode input to the positive supply.

High ESD (1.5kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to +125°C range enable the TL07xH devices for use in the most rugged and demanding applications.

INFORMATION

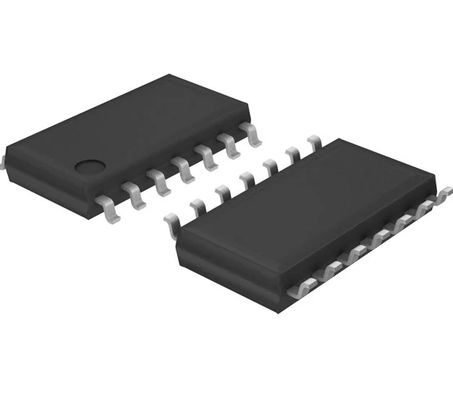

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
