商品の詳細:
お支払配送条件:
|
| 関数: | ステップアップ、ステップダウン | 出力構成: | 正または否定 |
|---|---|---|---|
| トポロジー: | バック、ブースト | 出力タイプ: | 調整可能 |
| 出力数: | 1 | ||
| ハイライト: | TL072CDR JFET-input op amp,low-noise audio op amp,SOIC-8 precision op amp |
||

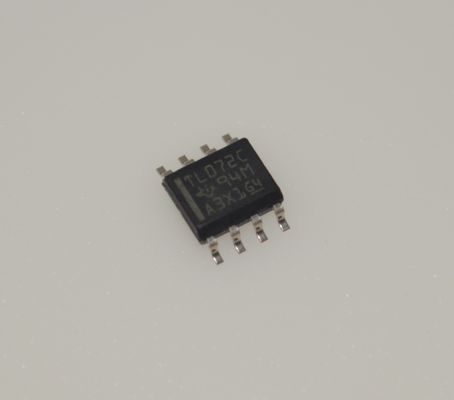

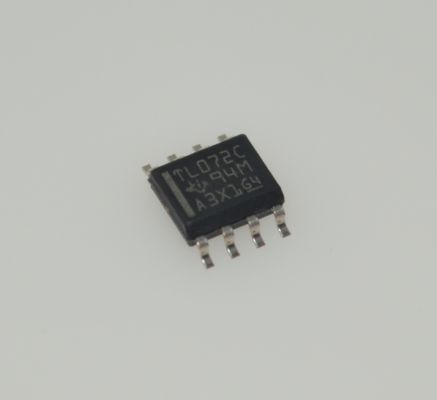

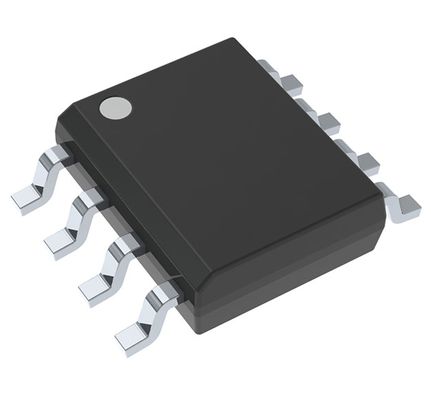

TL072CDR Low-Noise JFET-Input Op Amp with 3MHz Bandwidth 13V/µs Slew Rate ±18V Supply Low Input Bias High Input Impedance 0°C to 70°C Range and SOIC-8 Package for Audio & Precision Applications
Features
• High slew rate: 20V/μs (TL07xH, typ)
• Low offset voltage: 1mV (TL07xH, typ)
• Low offset voltage drift: 2μV/°C
• Low power consumption: 940μA/ch (TL07xH, typ)
• Wide common-mode and differential voltage ranges– Common-mode input voltage range includes VCC+
• Low input bias and offset currents
• Low noise:– Vn = 37nV/√ Hz (typ) at f = 1kHz
• Output short-circuit protection
• Low total harmonic distortion: 0.003% (typ)
• Wide supply voltage:– ±2.25V to ±20V, 4.5V to 40V
Applications
• Solar energy: string and central inverter
• Motor drives: ac and servo drive control and power-stage modules
• Single-phase online UPS
• Three-phase UPS
• Pro audio mixers
• Battery test equipment
Description
The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/μs), and common-mode input to the positive supply.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Amplifier Type
|
|
|
|
Number of Circuits
|
2
|
|
|
Output Type
|
-
|
|
|
Slew Rate
|
13V/µs
|
|
|
Gain Bandwidth Product
|
5.25 MHz
|
|
|
Current - Input Bias
|
65 pA
|
|
|
Voltage - Input Offset
|
3 mV
|
|
|
Current - Supply
|
1.4mA (x2 Channels)
|
|
|
Voltage - Supply Span (Min)
|
10 V
|
|
|
Voltage - Supply Span (Max)
|
30 V
|
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package
|
8-SOIC
|
|
|
Base Product Number
|
Drawing
