商品の詳細:
お支払配送条件:
|
| 関数: | ステップアップ、ステップダウン | 出力構成: | 正または否定 |
|---|---|---|---|
| トポロジー: | バック、ブースト | 出力タイプ: | 調整可能 |
| 出力数: | 1 | ||
| ハイライト: | TDA8950TH Class-D amplifier 150W,high-efficiency audio amplifier 95dB PSRR,Class-D amplifier with thermal shutdown |
||

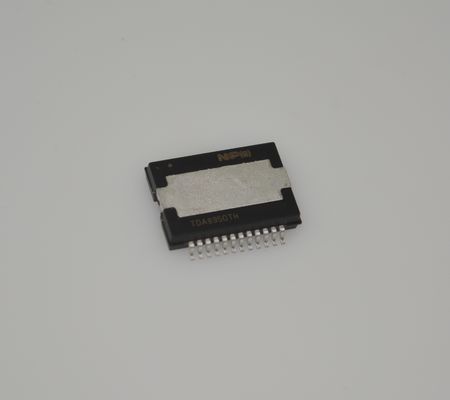

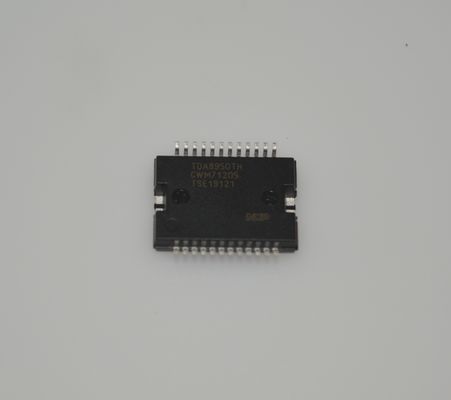

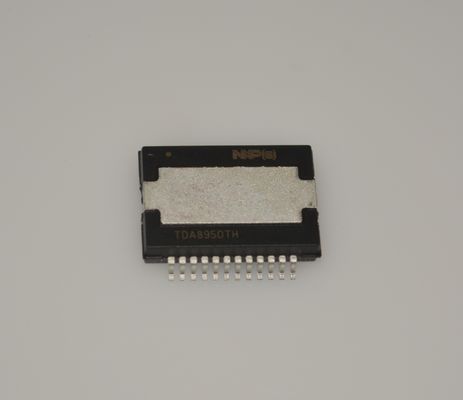

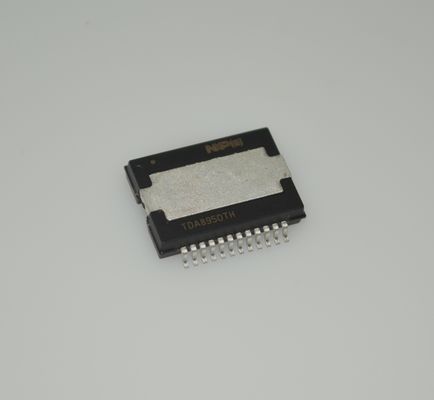

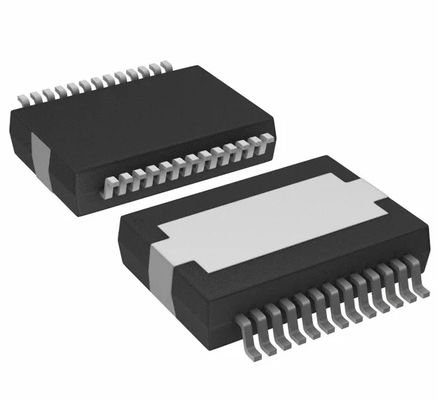

TDA8950TH/N1,118 2x 150W High-Efficiency Class-D Amplifier with 0.01% THD 95dB PSRR ±12V to ±40V Supply Full Protection Parallel Mode Mute/Standby and Thermal Shutdown
Features
Pin compatible with TDA8920B for both HSOP24 and DBS23P packages
Symmetrical operating supply voltage range from ±12.5 V to ±40 V Stereo full differential inputs, can be used as stereo
Single-Ended (SE) or mono Bridge-Tied Load (BTL) amplifier
High output power in typical applications:
SE 2 × 150 W, RL =4Ω (VP = ±37 V)
SE 2 × 170 W, RL =4Ω (VP = ±39 V)
SE 2 × 100 W, RL =6Ω (VP = ±37 V)
BTL 1 × 300 W, RL =8Ω (VP = ±37 V)
Low noise
Smooth pop noise-free start-up and switch off
Zero dead time switching
Fixed frequency
Internal or external clock
High efficiency
Low quiescent current
Advanced protection strategy: voltage protection and output current limiting
Thermal FoldBack (TFB)
Fixed gain of 30 dB in SE and 36 dB in BTL applications
Fully short-circuit proof across load
BD modulation in BTL configuration
Applications
DVD
Mini and micro receiver
Home Theater In A Box (HTIAB) system
High-power speaker system
Description
The TDA8950 is a high-efficiency Class D audio power amplifier. The typical output power is 2 × 150 W with a speaker load impedance of 4 Ω.
The TDA8950 is available in both HSOP24 and DBS23P power packages. The amplifier operates over a wide supply voltage range from ±12.5 V to ±40 V and features low quiescent current consumption.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
NXP USA Inc.
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Obsolete
|
|
|
Type
|
Class D
|
|
|
Output Type
|
1-Channel (Mono) or 2-Channel (Stereo)
|
|
|
Max Output Power x Channels @ Load
|
340W x 1 @ 8Ohm; 170W x 2 @ 4Ohm
|
|
|
Voltage - Supply
|
±12.5V ~ 40V
|
|
|
Features
|
Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Supplier Device Package
|
24-HSOP
|
|
|
Package / Case
|
24-BSOP (0.433", 11.00mm Width) Exposed Pad
|
|
|
Base Product Number
|
Drawing
