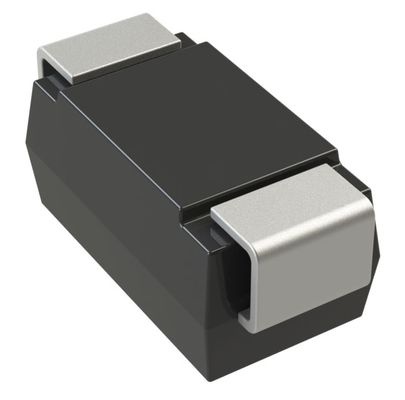

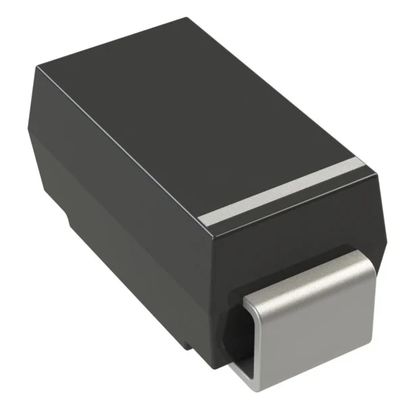

SMAJ5.0CA 5.0V TVS Diode with 600W Peak Power Bidirectional Protection Low Clamping Voltage Ultra-Fast Response SOD-123FL Package AEC-Q101 Qualified High Surge Capability and RoHS Compliance
andnbsp;
Features
■400W Peak Pulse Power capability at 10/1000andmicro;s waveform, repetition rate (duty cycle): 0.01%
■Excellent clamping capability
■Typical IR less than 1andmu;A when VBR minandgt;12V
■ Surface mount footprint for compact PCB layout
■Low profile package
■Typical failure mode is short from over-specified voltage or current
■Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
■ IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
■ESD protection of data lines in accordance with IEC 61000-4-2
■ EFT protection of data lines in accordance with IEC 61000 4-4
■Built-in strain relief
■ Fast response time: typically less than 1.0ps from 0 Volts to VBR min
■Glass passivated junction
■Low inductance
■High temperature to reflow soldering guaranteed: 260anddeg;C/30sec
■ VBR @ TJ= VBR@25anddeg;C x (1+andalpha;T x (TJ - 25)) (andalpha;T:Temperature Coefficient, typical value is 0.1%)
■Plastic package is flammability rated V-0 per UL-94.
■Meet MSL level1, per J-STD-020, LF maximun peak of 260anddeg;C
■Matte tin, leadandndash;free plated
■Halogen free and RoHS compliant
■Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD 609A.01)
andnbsp;
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
andnbsp;
Description
The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
andnbsp;
INFORMATION
|
Category
|
andnbsp;
|
|
|
Mfr
|
andnbsp;
|
|
|
Series
|
andnbsp;
|
|
|

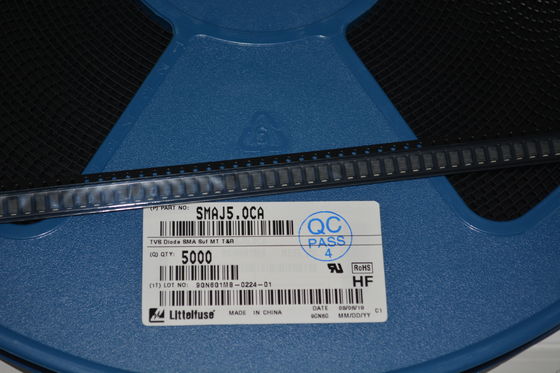

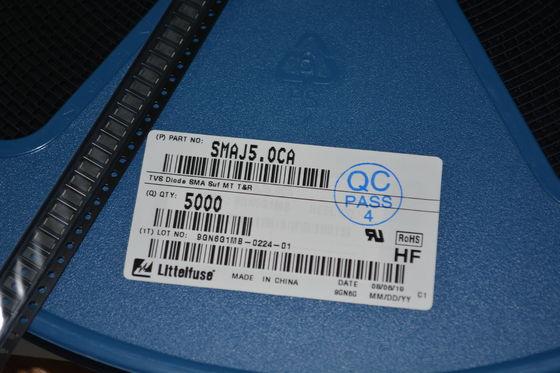

Packaging
|
Tape andamp; Reel (TR)
Cut Tape (CT)
Digi-Reelandreg;
|
andnbsp;
andnbsp;
andnbsp;
|
|
Part Status
|
Active
|
andnbsp;
|
|
Type
|
Zener
|
andnbsp;
|
|
Bidirectional Channels
|
1
|
andnbsp;
|
|
Voltage - Reverse Standoff (Typ)
|
5V
|
andnbsp;
|
|
Voltage - Breakdown (Min)
|
6.4V
|
andnbsp;
|
|
Voltage - Clamping (Max) @ Ipp
|
9.2V
|
andnbsp;
|
|
Current - Peak Pulse (10/1000andmicro;s)
|
43.5A
|
andnbsp;
|
|
Power - Peak Pulse
|
400W
|
andnbsp;
|
|
Power Line Protection
|
No
|
andnbsp;
|
|
Applications
|
General Purpose
|
andnbsp;
|
|
Capacitance @ Frequency
|
-
|
andnbsp;
|
|
Operating Temperature
|
-65anddeg;C ~ 150anddeg;C (TJ)
|
andnbsp;
|
|
Mounting Type
|
Surface Mount
|
andnbsp;
|
|
Package / Case
|
DO-214AC, SMA
|
andnbsp;
|
|
Supplier Device Package
|
andnbsp;
Drawing
