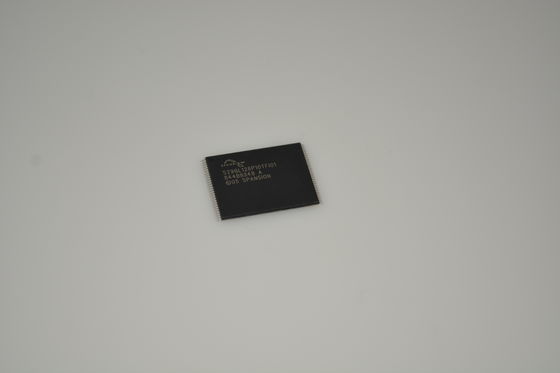

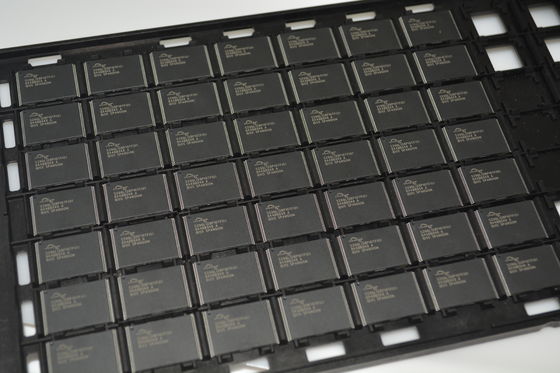

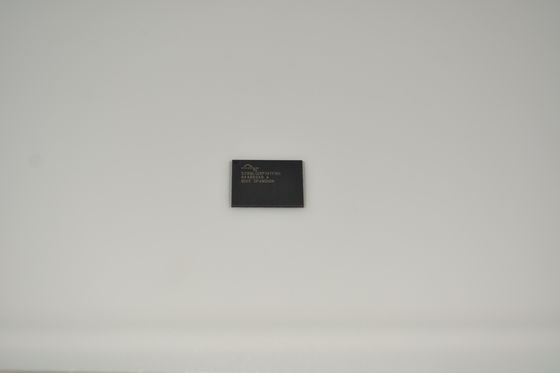

S29GL128P10TFI013 128Mb 100ns Speed Parallel NOR Flash with Top/Boot Block CFI Low Power Endurance & Industrial Temp for Reliable Embedded Systems

S29GL128P10TFI013 128Mb 100ns Speed Parallel NOR Flash with Top/Boot Block CFI Low Power Endurance & Industrial Temp for Reliable Embedded Systems

Features

1:Capacity:

128 Megabit (Mb): Equivalent to 16 Megabytes (MB), offering ample storage for boot code, operating systems, applications, and critical data.

2:Interface:

Parallel: Utilizes a 16-bit wide data bus (x16), delivering extremely high read speeds compared to serial flash (e.g., SPI NOR), making it ideal for

Execute-In-Place (XIP) applications.

3:High Performance:

Fast Read Speed (100ns): Achieves access times as fast as 100ns, enabling CPUs to quickly fetch instructions and data, reducing system wait

time and improving overall performance.

4:Flexible Architecture:

Uniform/Non-Uniform Sector Architecture: Supports two modes:

Uniform Sectors (128KB): The entire memory is divided into uniformly sized 128KB sectors, simplifying software management.

Non-Uniform Sectors (Top/Boot Block): Features asymmetrical sector sizes (e.g., 8KB, 64KB) at the bottom (low address) or top (high

address). This design is ideal for storing and protecting boot code in isolated, protected small sectors.

5:High Reliability:Long Endurance: Supports up to 100,000 program/erase cycles, far exceeding typical storage media, making it suitable for frequent firmware updates.

Data Retention: Data integrity maintained for 20 years, ensuring long-term stability.

6:Low Power Consumption:

Features CMOS static standby mode and automatic deep power-down mode, significantly reducing current consumption during inactivity to

extend battery life in portable devices.

7:Industrial Temperature Range:

The "I" in the model number denotes support for -40°C to +85°C operation, making it suitable for harsh environments such as industrial control,

automotive, and communications.

8:Advanced Features:

CFI (Common Flash Interface): Includes a standard CFI query table, allowing host systems to automatically identify flash manufacturer, capacity, electrical parameters, and sector structure, greatly simplifying driver development.

Hardware Reset Pin (RESET#): Provides hardware-level reset control, ensuring reliable system restarts.

Package: Housed in a TSOP56 package, a standard and mature form factor that facilitates soldering and manufacturing.

Applications

1. Industrial Control & Automation

This is a core application area for this chip. Industrial environments are harsh and require long-term stable operation.

Programmable Logic Controllers (PLCs): Used to store firmware, logic programs, and configuration parameters. Its 100,000 program/erase

cycles withstand frequent firmware updates, and its industrial temperature range (-40°C to +85°C) adapts to extreme factory conditions.

Industrial Robots: Stores control algorithms and operating systems. High read speed ensures real-time and precise control.

Sensors & Measurement Equipment: Stores calibration data and device firmware. The 20-year data retention capability ensures long-term data

validity.

2. Automotive Electronics

Modern vehicles extensively use Electronic Control Units (ECUs), which require high reliability and temperature adaptability from memory.

Instrument Clusters: Stores graphical interfaces and operating systems. High read speed enables smooth rendering.

Advanced Driver Assistance Systems (ADAS): Stores critical sensor fusion algorithms or boot code. Its high reliability is vital for driving safety.

Infotainment Systems: Serves as the medium for system booting and core firmware storage, providing a fast startup experience.

3. Networking & Telecommunications Equipment

Network devices require 24/7 uninterrupted operation and fast boot times.

Routers/Switches: A classic application for boot code storage. NOR Flash allows the CPU to execute code directly (XIP), enabling fast booting. Its Top/Boot Block architecture perfectly protects and isolates the Bootloader.

Base Station Equipment: Stores firmware and configuration information. The industrial temperature range allows deployment in outdoor environments.

4. Medical Equipment

Medical equipment has zero tolerance for failures, requiring absolute data reliability and integrity.

Patient Monitors, Infusion Pumps, Portable Diagnostic Devices: Stores device firmware and critical algorithms. High endurance and long-term data retention ensure stable operation throughout the device’s lifecycle.

5. Aerospace & Defense

These fields have the most stringent requirements for device performance, temperature tolerance, and reliability.

Navigation Systems, Flight Control Systems, Military Radios: Although more specialized radiation-hardened devices may exist, this chip’s high reliability makes it suitable for some mission-critical systems with high demands.

6. High-End Consumer & Office Electronics

Printers, Scanners, All-in-One Machines: These devices often feature complex firmware and user interfaces, requiring reliable storage and fast boot capabilities.

Description

The Cypress S29GL01G/512/256/128P are Mirrorbit® Flash products fabricated on 90 nm process technology. These devices offer a fast page access time of 25 ns with a corresponding random access time as fast as 90 ns. They feature a Write Buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes these devices ideal for today’s embedded applications that require higher density, better performance and lower power consumption.
