商品の詳細:
お支払配送条件:
|
| 関数: | ステップアップ、ステップダウン | 出力構成: | 正または否定 |
|---|---|---|---|
| トポロジー: | バック、ブースト | 出力タイプ: | 調整可能 |
| 出力数: | 1 | ||
| ハイライト: | SOIC-8 Dual Differential Comparator,2V-36V Range Dual Differential Comparator,LM2903DR Dual Differential Comparator |
||

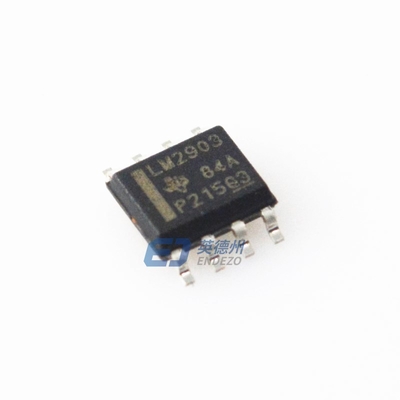

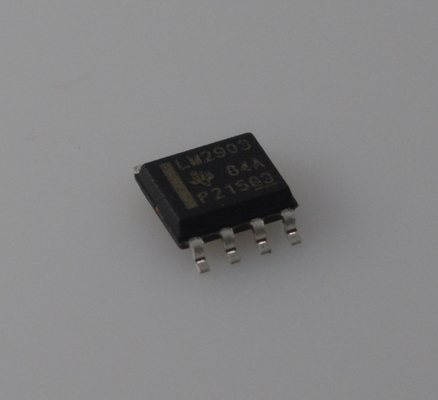

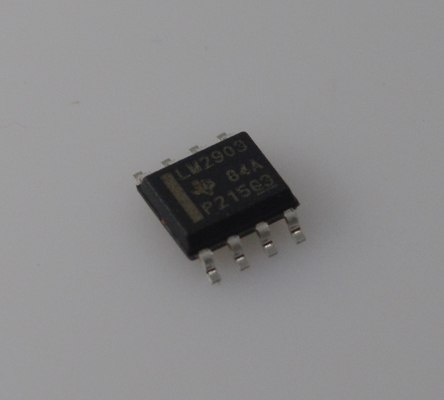

LM2903DR Dual Differential Comparator Wide 2V-36V Range Low 0.8mA Current Open-Collector Outputs Fast 1.3μs Response SOIC-8 Package - Ideal for Automotive/Industrial Control
Features
• NEW LM393B and LM2903B
• Improved specifications of B-version
– Maximum rating: up to 38V
– ESD rating (HBM): 2kV
– Low input offset: 0.37mV
– Low input bias current: 3.5nA
– Low supply-current: 200µA per comparator
– Faster response time of 1µsec
– Extended temperature range for LM393B
– Available in tiny 2 x 2mm WSON package
• B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions
• Common-mode input voltage range includes ground
• Differential input voltage range equal to maximum rated supply voltage: ±38 V
• Low output saturation voltage
• Output compatible with TTL, MOS, and CMOS
Applications
• Vacuum robot
• Single phase UPS
• Server PSU
• Cordless power tool
• Wireless infrastructure
• Applicances
• Building automation
• Factory automation & control
• Motor drives
• Infotainment & cluster
Description
The LM393B and LM2903B devices are the next generation versions of the industry-standard LM393 and LM2903 comparator family. These next generation B-version comparators feature lower offset voltage, higher supply voltage capability, lower supply current, lower input bias current, lower propagation delay, and improved 2 kV ESD performance and input ruggedness through dedicated ESD clamps. The LM393B and LM2903B can drop-in replace the LM293, LM393 and LM2903, for both "A" and "V" grades.
All devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Texas Instruments
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Standard (General Purpose)
|
|
|
Number of Elements
|
2
|
|
|
Output Type
|
Open-Collector, Rail-to-Rail
|
|
|
Voltage - Supply, Single/Dual (±)
|
2V ~ 36V, ±1V ~ 18V
|
|
|
Voltage - Input Offset (Max)
|
7mV @ 30V
|
|
|
Current - Input Bias (Max)
|
0.25µA @ 5V
|
|
|
Current - Output (Typ)
|
20mA
|
|
|
Current - Quiescent (Max)
|
2.5mA
|
|
|
CMRR, PSRR (Typ)
|
-
|
|
|
Propagation Delay (Max)
|
-
|
|
|
Hysteresis
|
-
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
8-SOIC
|
|
|
Base Product Number
|
Drawing
