| 関数: | 昇降圧 | 出力設定: | 肯定または否定 |
|---|---|---|---|
| トポロジー: | バック,ブースト | 出力型: | 調整可能 |
| 出力数: | 1 | ||
| ハイライト: | 600V IR2110STRPBF,2A MOSFET Driver IR2110STRPBF,600V MOSFET Driver IR2110STRPBF |
||

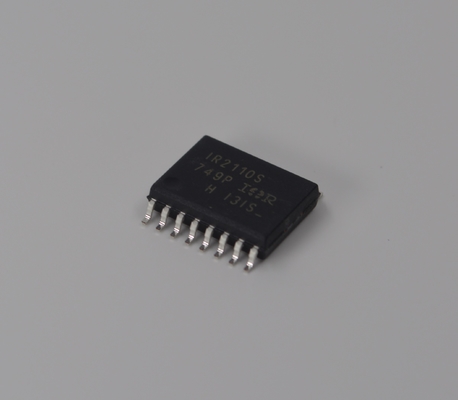

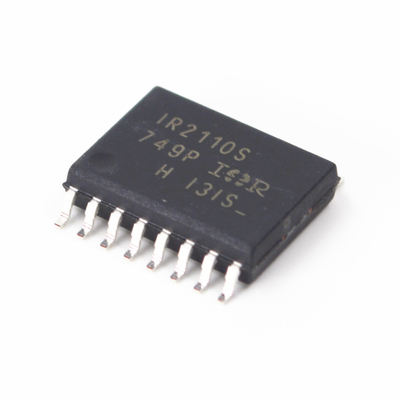

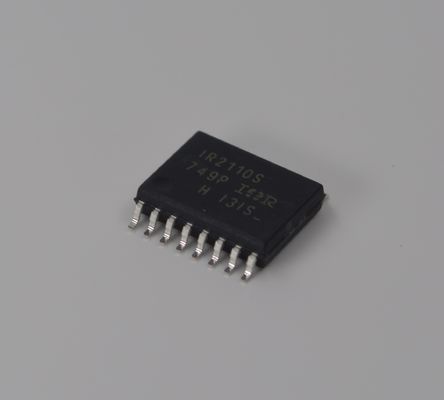

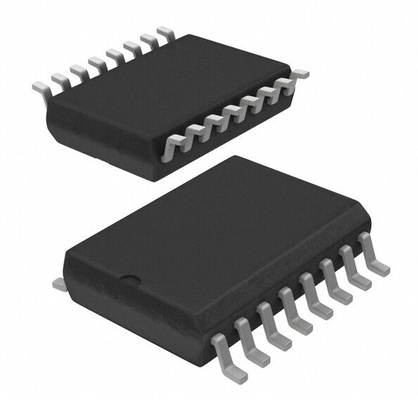

IR2110STRPBF 600V/1200V MOSFET Driver 2A Peak Fast 100ns Switching UVLO CMOS/LSTTL Inputs SOIC-16 Ideal for Motor Drives & Inverters
Features
• Floating channel designed for bootstrap operation Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune
• Gate drive supply range from 10 to 20V
• Undervoltage lockout for both channels
• 3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset
• CMOS Schmitt-triggered inputs with pull-down
• Cycle by cycle edge-triggered shutdown logic
• Matched propagation delay for both channels
• Outputs in phase with inputs
Description
The IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output chan nels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Infineon Technologies
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
DigiKey Programmable
|
Not Verified
|
|
|
Driven Configuration
|
Half-Bridge
|
|
|
Channel Type
|
Independent
|
|
|
Number of Drivers
|
2
|
|
|
Gate Type
|
IGBT, MOSFET (N-Channel)
|
|
|
Voltage - Supply
|
3.3V ~ 20V
|
|
|
Logic Voltage - VIL, VIH
|
6V, 9.5V
|
|
|
Current - Peak Output (Source, Sink)
|
2A, 2A
|
|
|
Input Type
|
Non-Inverting
|
|
|
High Side Voltage - Max (Bootstrap)
|
500 V
|
|
|
Rise / Fall Time (Typ)
|
25ns, 17ns
|
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
|
Supplier Device Package
|
16-SOIC
|
|
|
Base Product Number
|
Drawing
