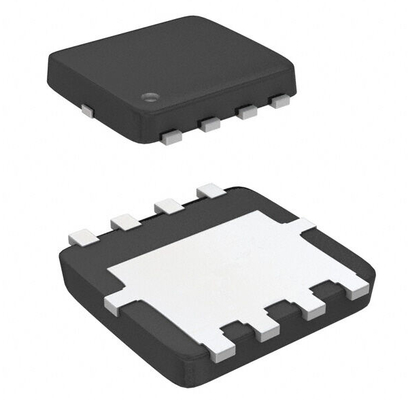

AON7534 30V N-Channel MOSFET 10.5mΩ Rds(on) 60A Continuous DFN5x6-8L -55°C to +175°C AEC-Q101
General Description
• Trench Power MOSFET technology
• Very Low RDS(on) at 4.5VGS
• Low Gate Charge
• High Current Capability
• RoHS and Halogen-Free Compliant
Application
• DC/DC Converters in Computing, Servers, and POL
• Isolated DC/DC Converters in Telecom and Industrial
Features
High-Efficiency Power switching
30V Drain-Source Voltage: ldeal for 12V/24V power systems
60A Continuous Current (100A pulsed): Supports high-power load driving
Ultra-Low Conduction Loss
Rds(on)= 10.5m2 (Vgs=10V): Minimizes power dissipation, boosts efficiency
High-Frequency switching Optimization
Low Gate charge (Qg=38nC): Enables high-frequency PWM control (up to 1MHz)
Fast switching: Rise/Fall time <20ns
Reliability & Protection
100% Avalanche Tested: Ensures stability under extreme conditions
AEC-Q101 Certified: Meets automotive-grade reliability standards
Leading Power Density: DFN5x6-8L package is 80% smaller than TO-220
Superior Efficiency: 30% lower conduction loss vs. 15mQ MOSFETS
Wide Temperature Range: -55'C to +175'C for harsh environments
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
-
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Not For New Designs
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs
|
5mOhm @ 20A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
2.2V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
22 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1037 pF @ 15 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
3W (Ta), 23W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Grade
|
-
|
|
|
Qualification
|
-
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
8-DFN-EP (3x3)
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
Drawing
