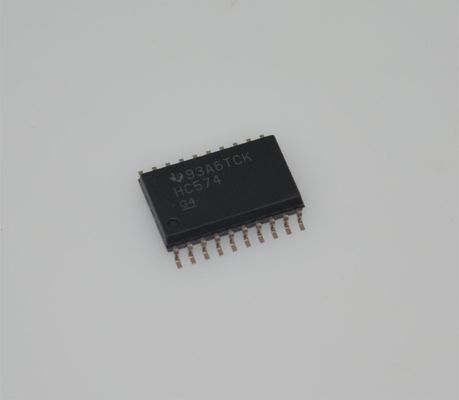

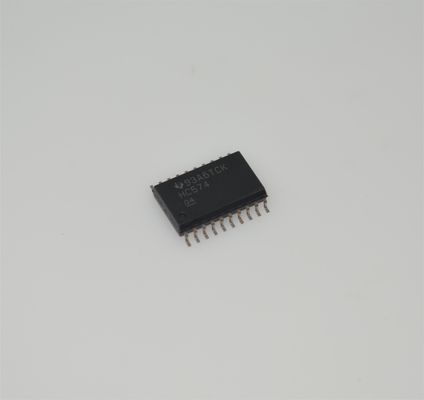

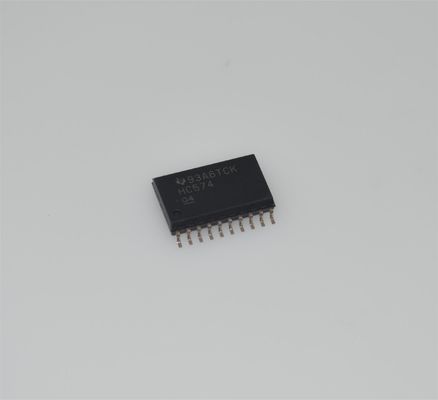

SN74HC574DWR Octal D-Type Flip-Flop 3-State Outputs 6ns Propagation Delay SOIC-20 2-6V Supply -40°C to +85°C
Features
• Wide Operating Voltage Range of 2 V to 6 V
• High-Current 3-State Noninverting Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads
• Low Power Consumption, 80-µA Max ICC
• Typical tpd = 22 ns
• ±6-mA Output Drive at 5 V
• Low Input Current of 1-µA Max
• Bus-Structured Pinout
• On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
Description
These octal edge-triggered D-type flip-flops feature 3-state outputs designed specifically for bus driving. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
INFORMATION
|
Category
|
|
|
|
Manufacturer
|
Texas Instruments
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Function
|
Standard
|
|
|
Type
|
D-Type
|
|
|
Output Type
|
Tri-State, Non-Inverted
|
|
|
Number of Elements
|
1
|
|
|
Number of Bits per Element
|
8
|
|
|
Clock Frequency
|
36 MHz
|
|
|
Max Propagation Delay @ V, Max CL
|
46ns @ 6V, 150pF
|
|
|
Trigger Type
|
Positive Edge
|
|
|
Current - Output High, Low
|
7.8mA, 7.8mA
|
|
|
Voltage - Supply
|
2V ~ 6V
|
|
|
Current - Quiescent (Iq)
|
8 µA
|
|
|
Input Capacitance
|
3 pF
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
20-SOIC
|
|
|
Package / Case
|
20-SOIC (0.295", 7.50mm Width)
|
|
|
Base Product Number
|
Drawing
